Fan Accessories & Roof Curbs
- Back Draft Dampers
- 5 Amp Speed Controller
- Model VI Vibration Isolator
- Cerus Building Automation Motor Starter
- Roof Curbs, Pipe Portals & Equipment Rails
- For applications up to 5.0 amps, 115v
- For use with shaded pole & permanent split capacitor motors.

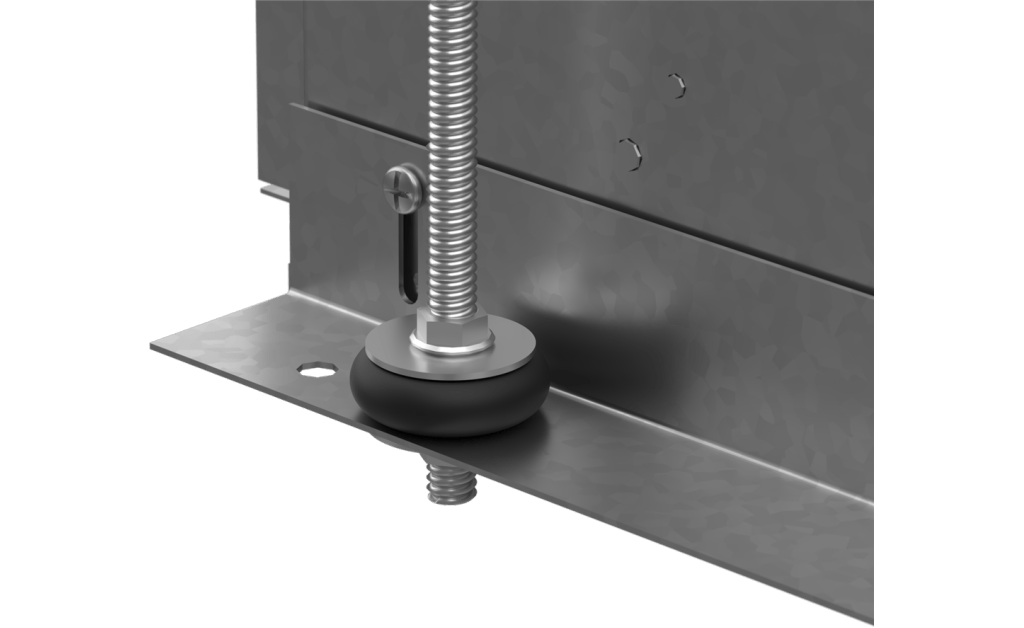

- For use with model SP and CSP fans
- Kits include all hardware necessary to mount one fan, except for the 10-32 threaded rod
Cerus Model BAS-1P
- Lockable disconnect switch
- Hand / Off / Auto switch
- Rated for max 1.0 hp at 115v/1ph to 230v/1ph
- Receives control input signal to activate the motor
- Sends control output for proof of run & fault
- Adjustable motor overload, 1-16 amps, class 10
- NEMA 1 enclosure, fits on standard handy box

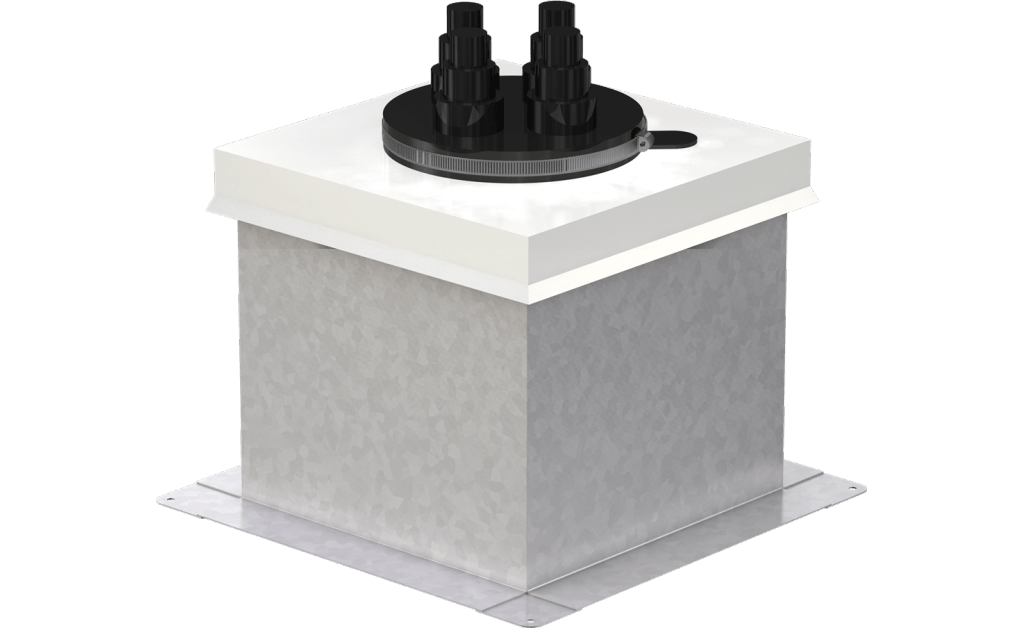

Shown at left is a complete pipe portal with roof curb including the following parts:
- Part # 6240 - N28 Portal with Curb Cover
- Part # 6250 - 12" Roof Curb
- Heavy gauge, welded galvanized steel
- Top rain cap covers wood nailer
- 45 Degree canted base is top dimension + 8"
