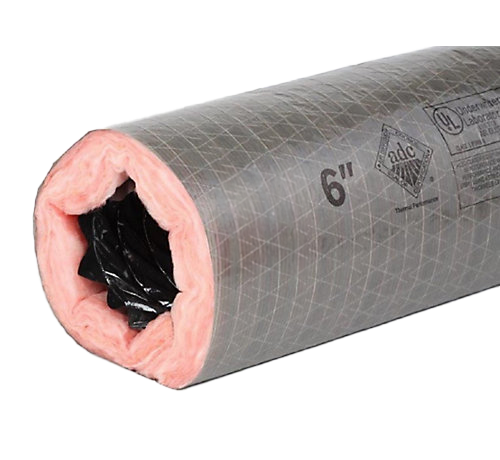

Model 076 - Gray Polyester Jacket
UL 181, Class 1 air duct. Manufactured with a reinforced, gray polyester outer jacket. The inner core is a double lamination of tough polyester which encapsulates a steel wire helix.
- Acoustical Attenuation Benefits
- Working Pressure:
+ 6" wg for 6" dia to 12" dia
+ 4" wg for 14" dia to 20" dia
- 0.75 wg for all diameters - Rated Velocity: 5,000 fpm
- Operating Temperature: -20 to 180º F
- Standard Length: 25 Feet
